22 inch Touch Tablet PC (10 projected capacitive screen)

  • 22 inch Touch Tablet PC (10 projected capacitive screen)
  • 22 inch Touch Tablet PC (10 projected capacitive screen)
  • 22 inch Touch Tablet PC (10 projected capacitive screen)
  • 22 inch Touch Tablet PC (10 projected capacitive screen)
  • 22 inch Touch Tablet PC (10 projected capacitive screen)
  • 22 inch Touch Tablet PC (10 projected capacitive screen)
  • 22 inch Touch Tablet PC (10 projected capacitive screen)
  • 22 inch Touch Tablet PC (10 projected capacitive screen)
  • 22 inch Touch Tablet PC (10 projected capacitive screen)
  • 22 inch Touch Tablet PC (10 projected capacitive screen)
  • 22 inch Touch Tablet PC (10 projected capacitive screen)
  • 22 inch Touch Tablet PC (10 projected capacitive screen)
Model No.︰SD-225A
Brand Name︰SD
Country of Origin︰China
Unit Price︰US $ 350 / pc
Minimum Order︰10 pc
Share on:

 Total 9 Related Items
Prev12345Next

Product Description

22 -inch LED display basic parameters:
Resolution: 1920 * 1080
Aspect Ratio : 16:9
Viewing area : 476.64mmX268.11mm.
Brightness : 250cd/m2
Contrast Ratio: 5000:1
Pitch : 0.24825mm
Viewing Angle: 178/ 178
Response Time: 5 ms
Enclosure Type ABS material

Projected capacitive touch touch : Apple , like the surface
Resolution: 4096 * 4096 ; Response time : less than 5ms;
Positioning accuracy : less than 2.5mm ( 25 points each centimeter )
Transmittance : 98 ± 2% touch life: more than 70 million times click
 Surface hardness : ≥ 7H job stability : -30 ℃ ~ 70 ℃
Operating Humidity : 0% ~ 90% non-condensing ; Storage temperature : -40 ℃ ~ 85 ℃
Storage humidity : 0 % to 90% non-condensing ;
 In Windows 7 Windows 8 next
That does not need to install any drivers with
Can zoom in / out / rotate operation. Various applications can achieve image scaling, rotation , etc.
Support handwriting ;
Desktop stand can be adjusted to 15 ~ 90 ° 's . There are patent counterfeiting

PC configuration:
CPU:. Inter Atom dual-core 1037U (I3)
Graphics : IntelGMA3650 Graphics
Memory : DDR3 2G
Hard disk : 320G/540000 turn
External : 1 * HDMI Interface 1 * VGA Interface 4 * USB Interface 1 * 12VDC input interface 1 * RJ45 port 1 * Audio I / O Interface
Other optional

Size and weight :

Physical Dimensions : 536mmX328mmX50mm
Package size : 635mmX187mmX445mm

Weight ; 8.5kg

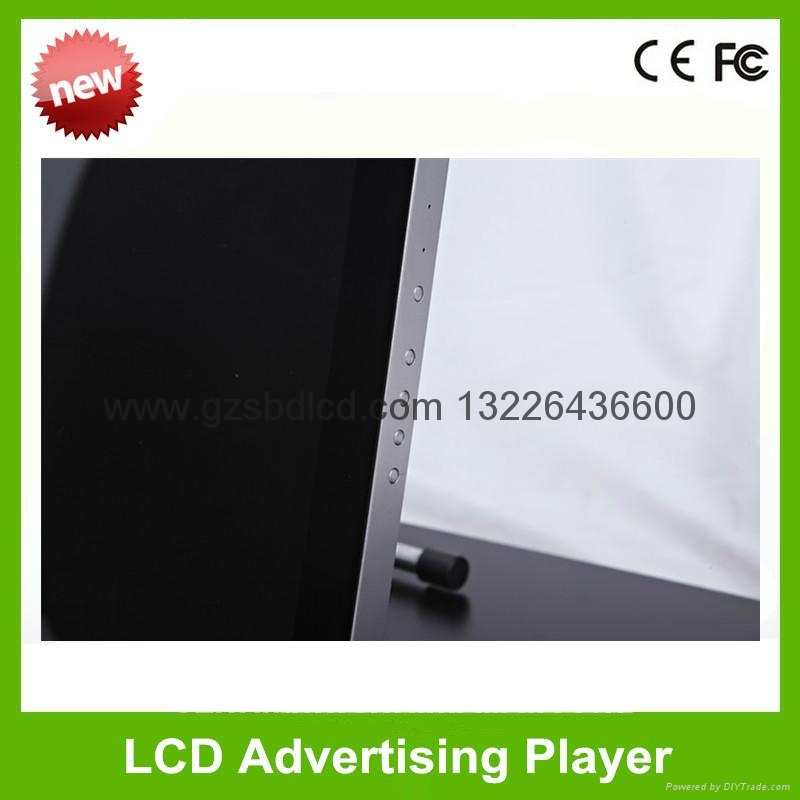

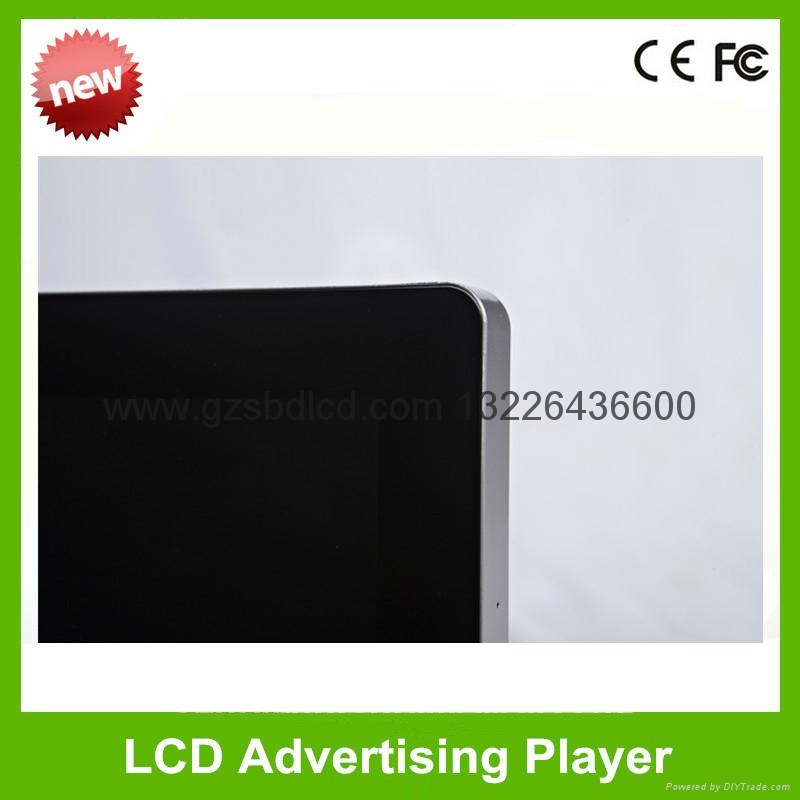

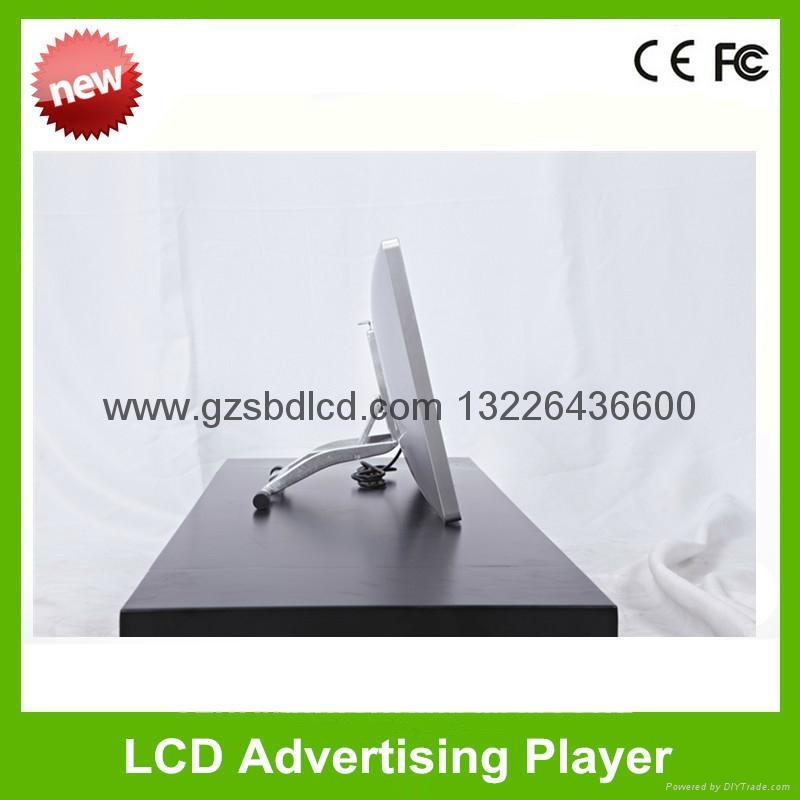

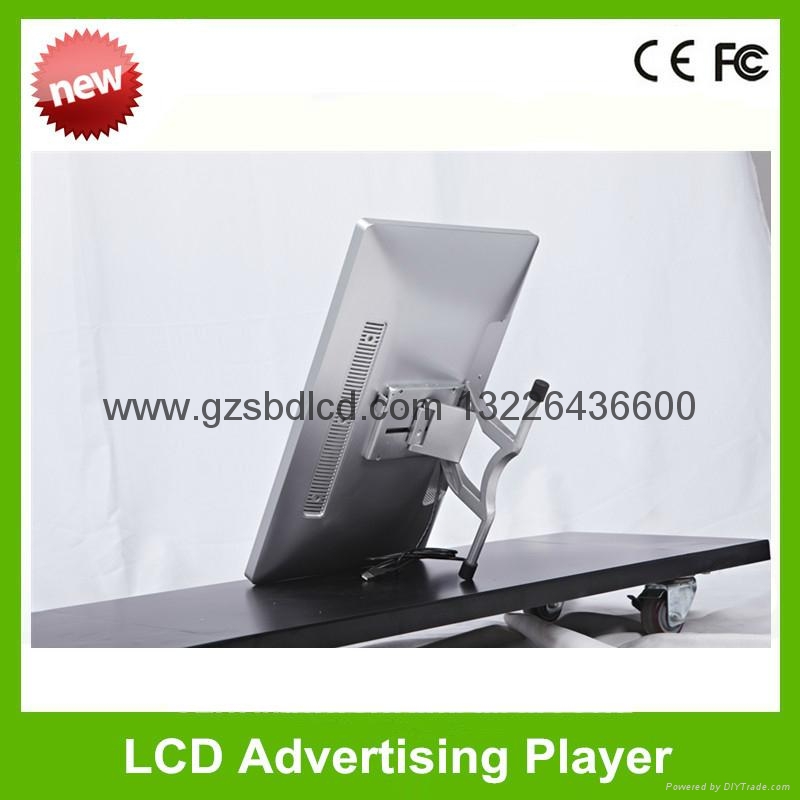

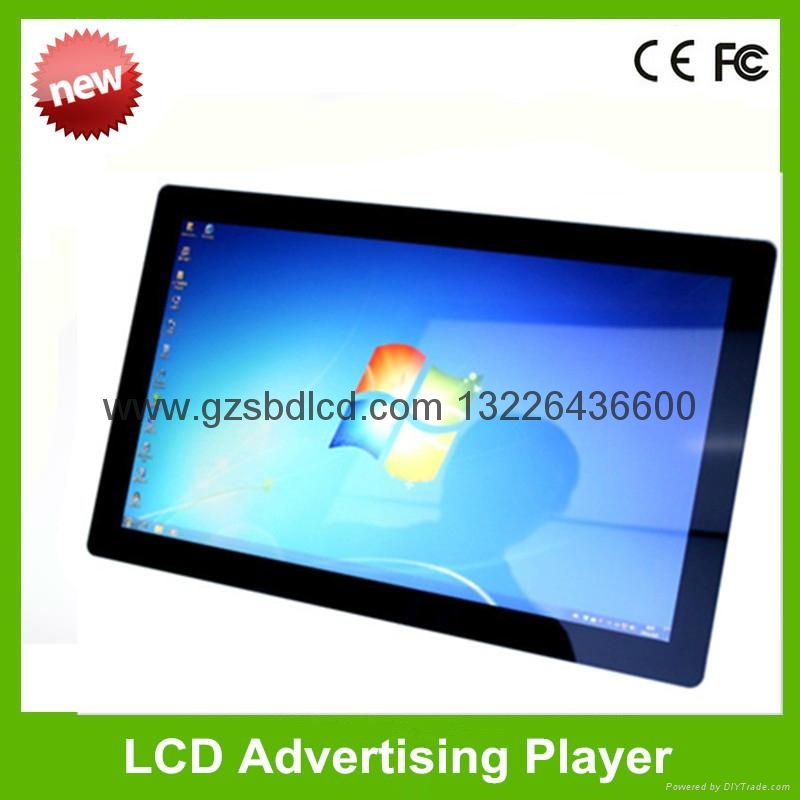

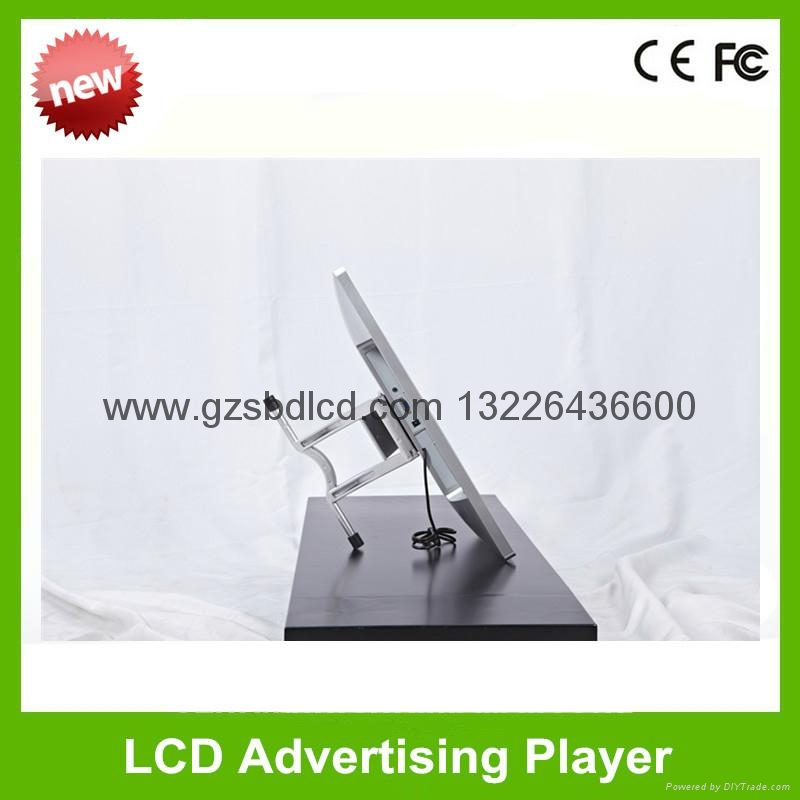

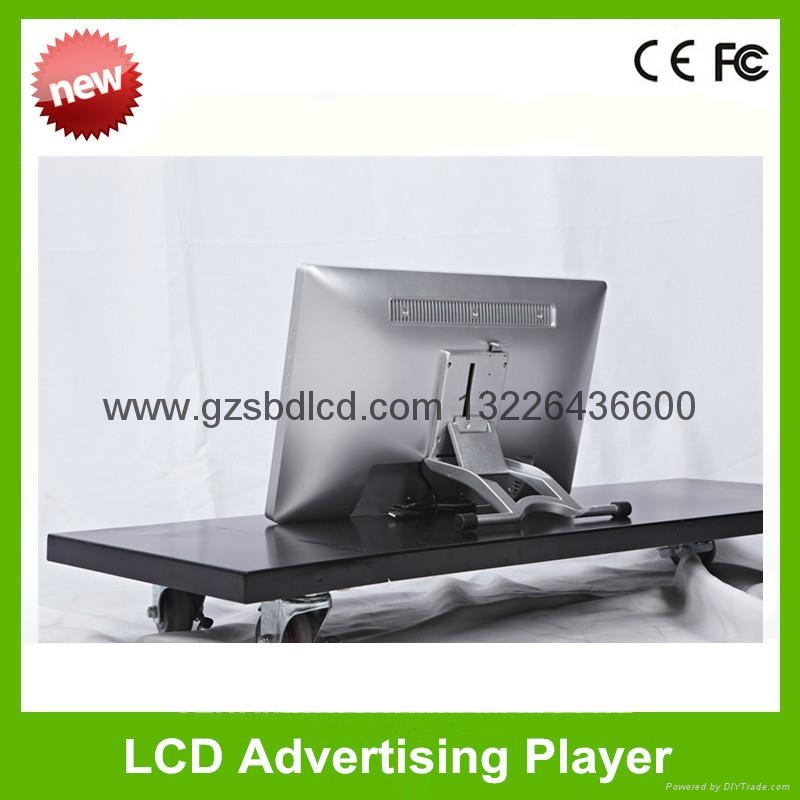

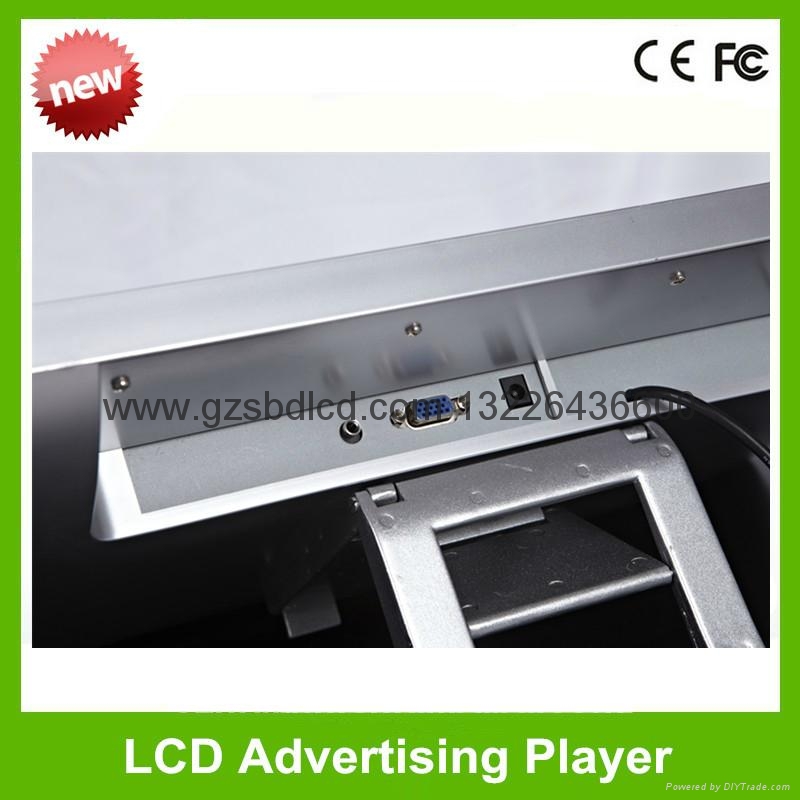

Product Image
